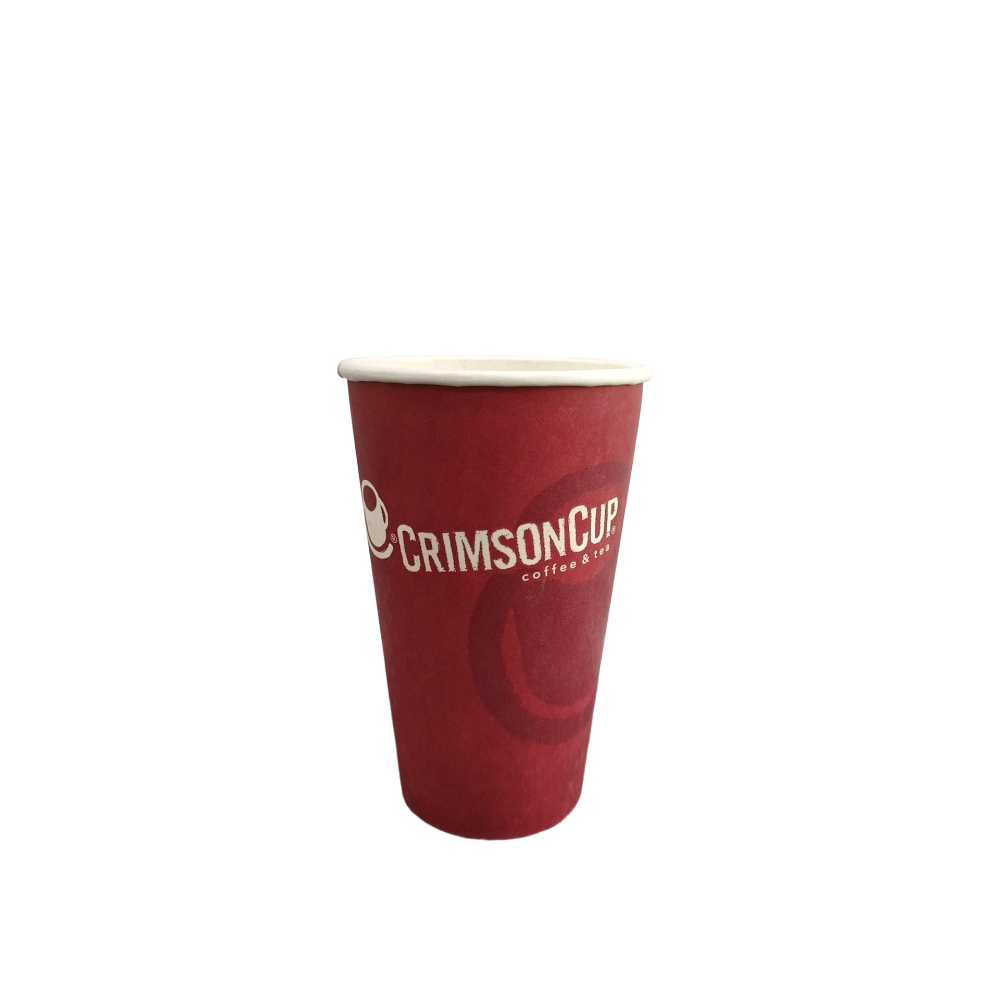

DP-RS12 Double sides PE coated paper cup making machine is an equipment can produce for Single side PE paper cups and double PE paper cups. With ultrasonic, it can use Double sides PE paper cups,which compared to the original Single side PE paper cup machine,this machine has up to a better quality and beautiful appearance with Ultrasonic welding function.The running speed is from 80-90pcs/min. These paper cups suitable for both hot and cold drinking,such as coca cola,ice cream and coffee etc. And we use good ultrasonic in double PE coated paper cup machine, so quality is better than other company in same field.
Machine Model |
DP-RS12 |
|
Machine size |
2850x1350x1750mm |
|
Package Size |
2900*1400*1800mm (Wooden case) |
|
Weight |
2100 KGS |
|
Voltage |
3 phase 380V/220V |
|
Power |
5 kw |
|
Air Source |
0.5-0.8Pa, 0.4m2/min |
|
Frequency |
50HZ |
|
Capacity |
80-90 Pcs/min |
|
Paper Material |
Single/Double PE Paper |
|
Paper Gram |
150-350 g/m2 |
|
Paper size |
3-16 OZ |
|
Cup size |
A:Top Diameter |
Φ 60-90 mm |
B:Height |
Φ 50-130 mm |
|
C:Bottom Diameter |
Φ 40-70 mm |
|
D:Bottom Depth |
Φ 5-10 mm |
|
