It's widely use in the PET/PVC/HIPS/PS plastic lids, medicine/food/daily/electronics/hardware etc production. The molding area of our cup lid machine is larger than other manufacturers. The cup lid machine adopts PLC control and servo motor traction, which is more intelligent and precise than the traditional model. The sheet is pulled to the punching position more accurately without error. We can flexibly install and add the whole body cover of the machine to increase the operation safety of the machine according to the customer's needs, avoiding various safety accidents.
Main function |
KQ-450A |
Main function |
PET PVC HIPS PS etc. Plastic products Automatic Forming, punching, cutting |
Application |

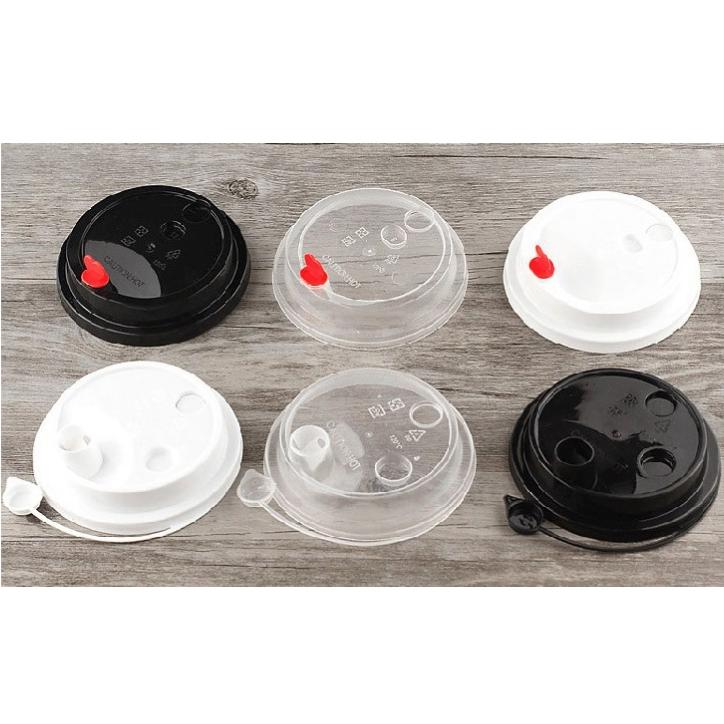

Used in PET/PVC/HIPS/PLA/PS plastic lids, medicine/food/daily/electronics/hardware production |
Speed |
15-35（cycle/min) |
Material |
PVC/PET/HIPS/PLA/PS |
TotalPower |
6KW |
compressedai |
Air compressed air with 0.6-1.0 Mpa pressure |
Air consumption |
3m/Min |
Water chiller for moulds |
60L/H Tap water or recycle water with 60L/H consumption |
Max Forming width |
300mm |
Max making Length |
450mm |
Max making depth |
46mm |
Overall dimension |
4000x1200x1900mm |
Weight |
2200kg |
