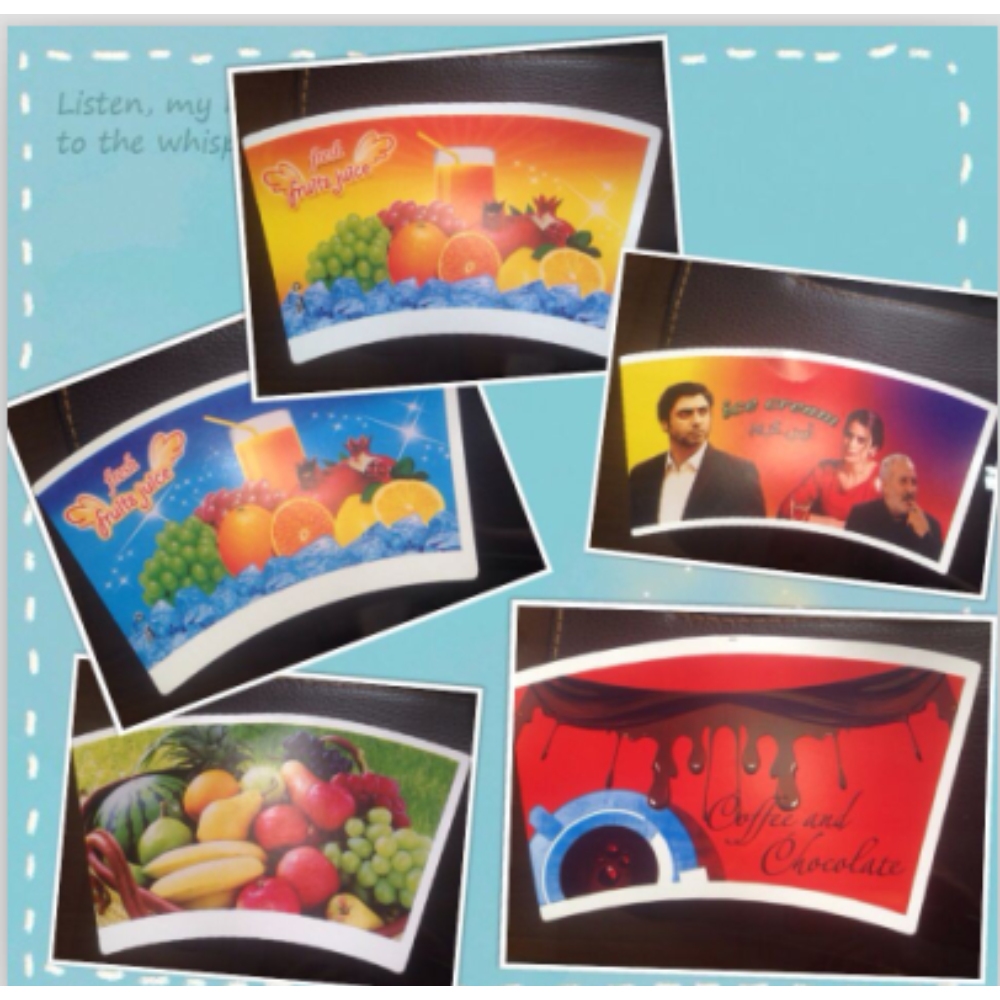

JTMQ-D850 is high-speed automatic die cutting machine adopts automatic die cutting technology to blend reel slitting, die cutting and scrap removal, saving the slitting link of traditional process and directly cutting print. The print has smooth cut, greatly reducing energy consumption, manpower and labor intensity and improving paper utilization. PLC microcomputer control system and visual liquid crystal human-computer interface achieve full automation, dynamically display working conditions and faults of the machine and achieve intelligent collection. This machine is ideal equipment for slitting disposable paper bowls, paper cups and other paper vessels.
Principal Technical Data： | |
Item |
Details |
Max Paper Width: |
850mm |
Max Roll Diameter: |
1500mm |
Max Speed: |
180-200 Strokes/min |
Control System: |
AC Servo Motor (Delta, 1000kw) |
Electric Power: |
8 KW |
Air source |
0.2mm/min,0.5MPa |
Paper thickness |
125-350 gsm |
Speed of paper feeding |
35meter/min |
Dimensions: |
2900×1400×1700mm |
Electrical Cabinet: |
700×700×1350mm |
Weight: |
1500 Kgs |
